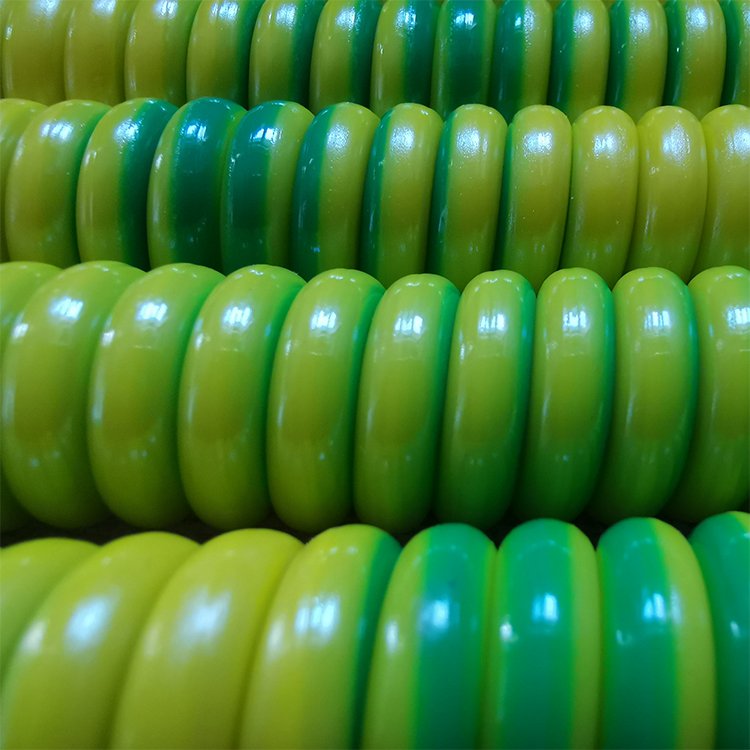

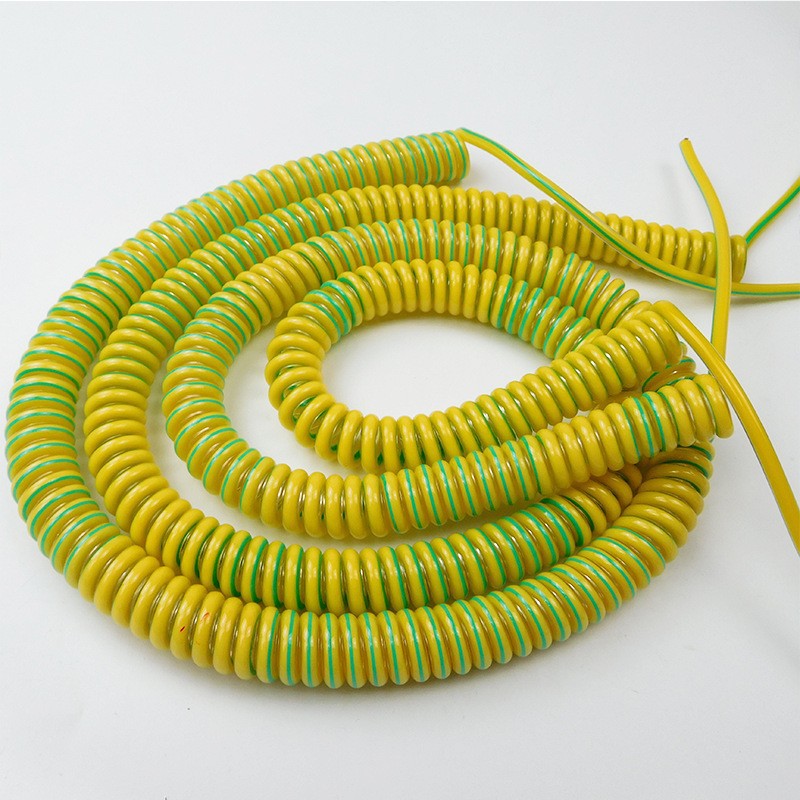

Custom PU/PUR/TPU Spring Wire Cable, low temperature resistant, new energy flame-retardant Spiral Cable, minus 40 degrees Celsius, spring grounding wire power cord, yellow green dual color wire

Custom PU/PUR/TPU Spring Wire Cable, low temperature resistant,  new energy flame-retardant Spiral Cable, minus 40 degrees Celsius, spring grounding wire power cord,  yellow green dual color wire
E-mail: [email protected].
Description Review
Description

Custom PU/PUR/TPU Spring Wire Cable, low temperature resistant,  new energy flame-retardant Spiral Cable, minus 40 degrees Celsius, spring grounding wire power cord,  yellow green dual color wire



Manufacturing Process
Choosing Raw Materials---Twisting---Extruding---Cable Processing---Weaving/Braiding---Sheath Processing---Spiraling and Forming---Inspection and Packing---Packed.Ready made Products




1. Application:

For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.


2. Structure & Specifications:

Conductor: Tinned copper wire, Solid or multi-strands
Insulation material: PVC / PE / PP/Thermoplastic Elastomer
Sheath material: PU / TPU /PUR/ PA / PVC / TPEE/Polyurethane
Expanding length: 1.0 m-25.5m
Color: yellow, grey, black , Red, Green, Blue , Orange , White, different colors can be customized.

Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees

Spring Length: arbitrary (customized according to customer requirements)

Good flexibility and elasticityElongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.

3. Characteristics:
Sensitive elasticity, sturdy and durable, stable transmission, moderate relaxation, flexible stretching, and no deformation during stretching


High temperature flame retardant, and wear-resistant

The outer sheath is made of flame-retardant material, which is safe and reliable. It is not easy to burn when leaving an open flame, and can effectively prevent fire hazards and ensure electrical safety

4. Range we can produce:

Nominal cross section: 0.12~4mm2
Nmubers of cores: 1~30 core

Length of Spring: customized as per your request

1. We specializes in the spiral cables for more than 10 years, our professional teams can give you the best quality products, the best service and the reasonable price.
2. We are the manufacturer.
3. Any inquiries will be replied within 24 hours.
4. Quality is under control and supervision during the production. All products will strictly quality    checked before packing. All products will be well packed before shipping.

5. Reference Drawing:



6. Our Service

1.OEM/ODM available
(1). Printing your logo on the cable.
(2). Any your idea on cable and packing cartons are available.

2.Sampling
Give us your application and your request---we recommend suitable cable.
Free samples if we have stocks otherwise we can customize it and charge some cost for it. And the sample cost will return you when receive your bulk order more than USD1000. Sample need 1-2 weeks to customized. if not customized product, sample provide within 3 days.

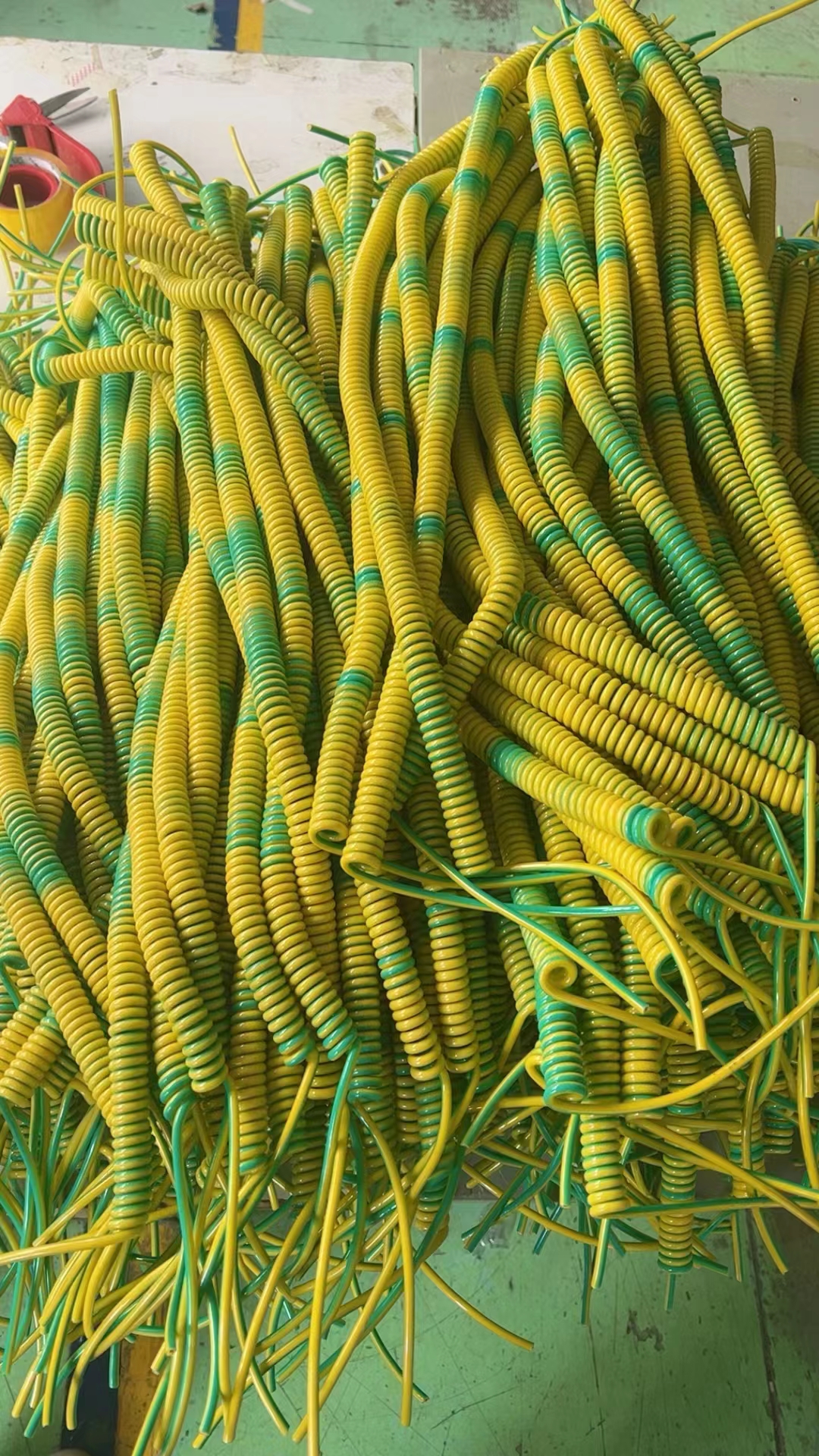

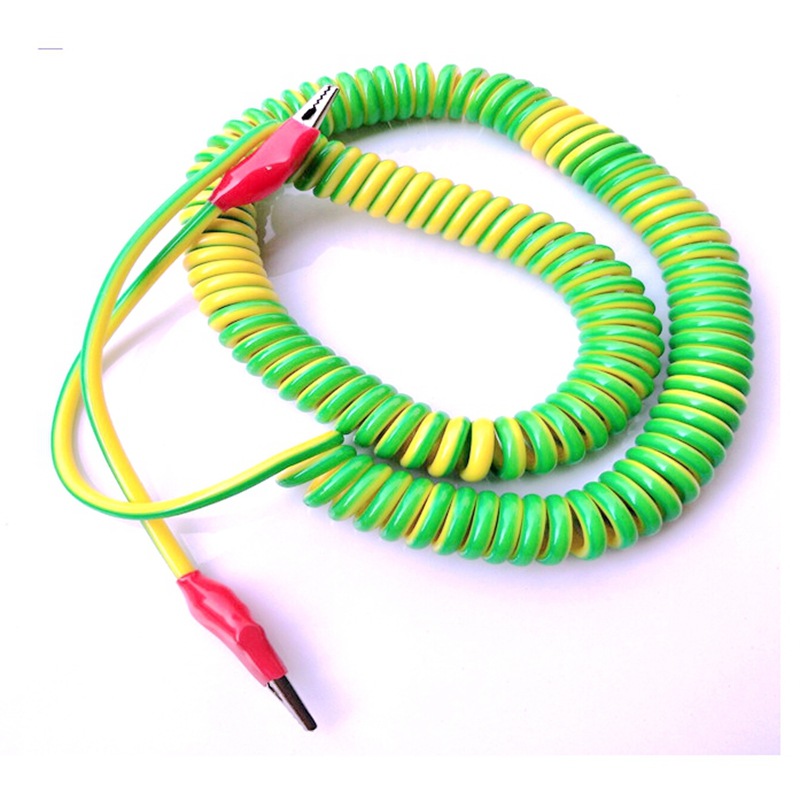

3. Pictures:

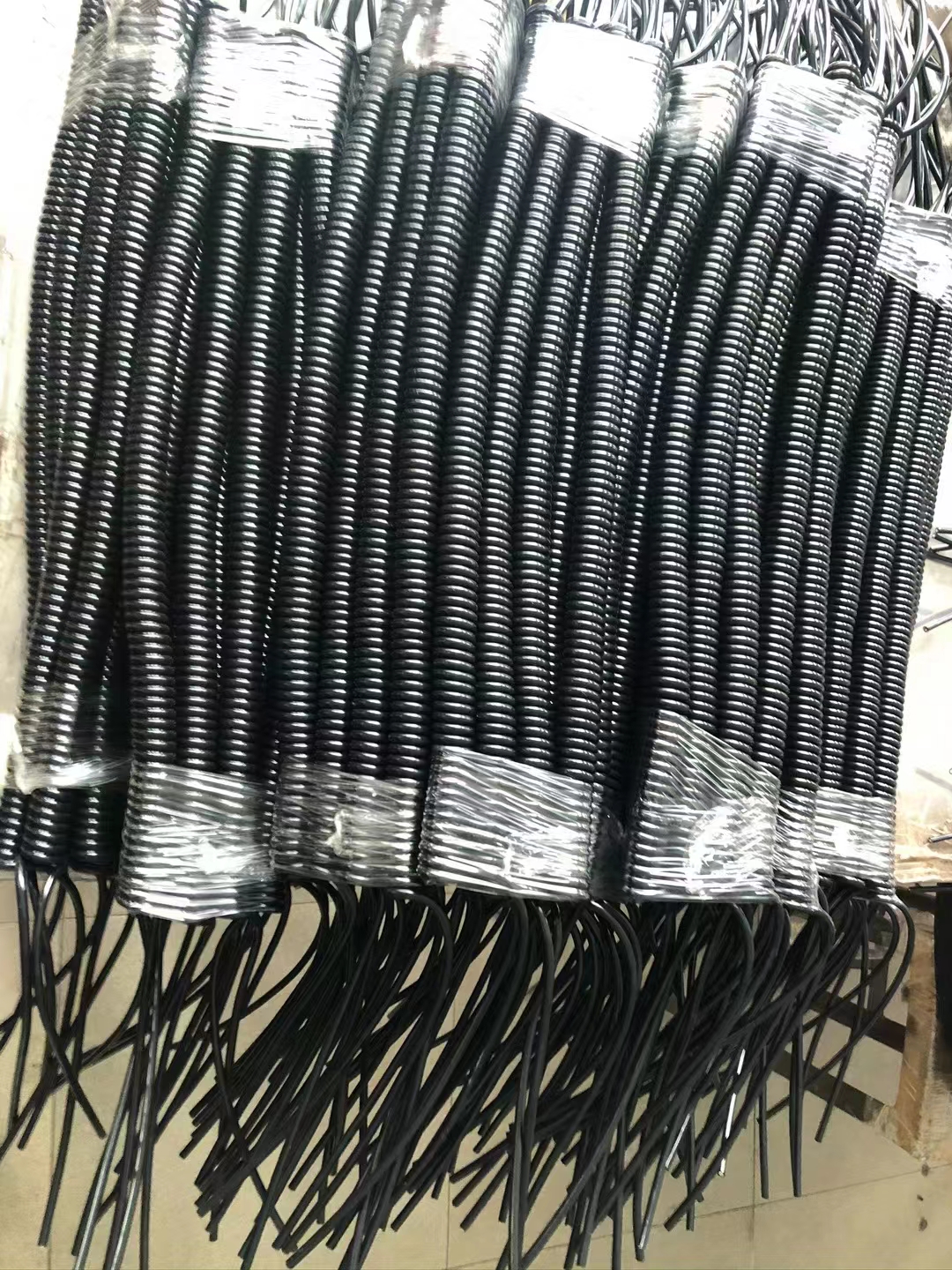

4. Packing:




5. Shipping:




6. Knowledge: What is spiral cable?

Spiral cable (also known as spring wire or helix cable)

It is necessary to use spiral cables in almost all industries. Spiral cables are used everywhere in communication (telephone, radio), medical technology, electric locomotive industry, mechanical engineering, or lighting industry. In addition to its electrical mechanical advantages, spiral cables often serve as excellent optical structural solutions. If you use PVC and PUR cables, the color of the spiral cable can mostly be coordinated with the color of the object. At the same time, we can also supply shielded spiral cables. Spiral spring cable series, spiral cables for instruments and meters, spring wires for automotive power supply, spiral cables for transformer power supply, spiral cables for large electromechanical equipment, spiral cables for cleaning machine power supply, 5-core spring wires for automatic meter billing, and so on.

1. PVC spiral cable: High economic efficiency, low mechanical and chemical resistance. Moderate elastic force. Suitable for installation and use in light industry, computer and other occasions.
2. PUR spiral cable: very good elasticity. It has better mechanical and chemical properties, especially cold resistance, oil resistance, weather resistance, wear resistance, and tear resistance. Suitable for use in mechanical manufacturing, electric tools, and other fields, it is an excellent solution in most applications.
3. PUR shielded spiral cable: has better chemical properties. Especially cold resistant, oil resistant, weather resistant, wear resistant, and tear resistant. The spiral overall shielding structure can resist various electromagnetic interference, and is particularly suitable for all occasions that require minimal installation space, such as medical, semiconductor, and chip applications.

4. Neoprene spiral cable: sturdy spiral wire. It has better weather resistance characteristics, can resist all types of oils and chemicals, and has excellent tensile and bending performance. Very good elasticity. Widely used in fields such as construction industry, conveying equipment, and metallurgy. Only available in black.
5. Scope of application: Used for rated AC voltage of 450/750V or DC voltage below 6V-1000V, requiring round-trip operation. Assembly circuits that move up and down are summarized and wired, such as telephones, computers, electronic devices, and connectors for cars, trailers, and springs.

Product characteristics: It has good flexibility and elasticity (the elongation length can reach 2-3 times the original spring length). It has good cold resistance, flame retardancy, oil resistance, and wear resistance. Various types of spiral spring wires can be produced according to different requirements in different occasions.

6. Conductor structure: Use single strand or glued bare soft copper wire (or tinned copper wire)

Insulation material: Polyoxyethylene, polyethylene, polyethylene, or polyethylene can be used to meet the requirements of different occasions.

7. Sheath material: Flame retardant polyurethane elastic material PU material is generally used

8. Working temperature: According to customer requirements, cold resistant -65 degrees; Temperature resistance of 80 degrees. 105 degrees. 125 degrees

9. Production range: Standard cross-section: 0.12-4 square meters (special specifications can be produced according to customer requirements).

10. Number of electrical cores: 1-37 (special specifications can be produced according to customer requirements).

11. Spring length: according to customer requirements
